RT5-2387 Series
Product Features
* RT5-2387ET
* 2θ1/2 : 20° , λp: 850 nm , Ie : 100 mW/sr @ 50mA
* RT5-2387E10TBTK
* 2θ1/2 : 10° , λp: 850 nm , Ie : 145 mW/sr @ 50mA
* Customization for different Electro-optical characteristics. Please check out the chart on the lower left corner.
* Efficient, low-energy illumination for night vision and surveillance systems
* Rapid response times, and minimal heat emission
* Customization for different package size
Application:
Medical equipment
Barcode reader
Bill detector
Optical switch
Optical fiber communication
Remote control
Smoke detector
Consumer product
- Product Specifications
- Product Description

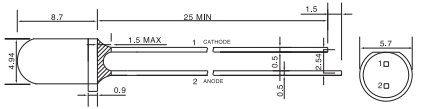

![](https://www.rodan.com.tw/upload-files/Sensor_Component/2387spec.png)
![](https://www.rodan.com.tw/upload-files/Sensor_Component/2387spec_2.png)
LED IR (Infrared) provides efficient, low-energy illumination for night vision and surveillance systems. Its key features include enhanced visibility in low-light conditions, extended lifespan, rapid response times, and minimal heat emission. These attributes make LED IR an ideal choice for security applications, ensuring reliable performance and energy efficiency.
