RT-3030E01-TK
Product Features

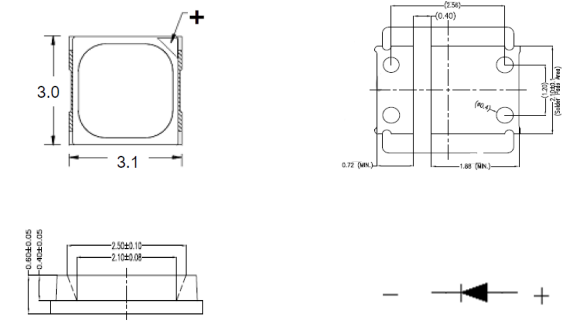

* 3030 , 2θ1/2 : 120° , λp: 855 nm , Ie : min 80 mW/sr @ 170mA
* Compact, surface-mount package
* Rapid response times, and minimal heat emission
* Customization for different package size
Application:
Medical equipment
Barcode reader
Bill detector
Optical switch
Optical fiber communication
Remote control
Smoke detector
Consumer product
- Product Specifications
- Product Description
The LED Infrared packaged in EMC PLCC (Plastic Leaded Chip Carrier) combines the efficiency of Infrared light emission with the convenience of a compact, surface-mount package. This integration enhances durability, ease of assembly, and thermal performance, making it a reliable choice for diverse applications such as remote sensing and communication systems.
