RT-TI2835ET05
Product Features
* 3528 , 2θ1/2 : 120° , λp: 850 nm , Ie : 22 mW/sr @ 150mA
* Compact, surface-mount package
* Rapid response times, and minimal heat emission
* Customization for different package size
Application:
Medical equipment
Barcode reader
Bill detector
Optical switch
Optical fiber communication
Remote control
Smoke detector
Consumer product
- Product Specifications
- Product Description

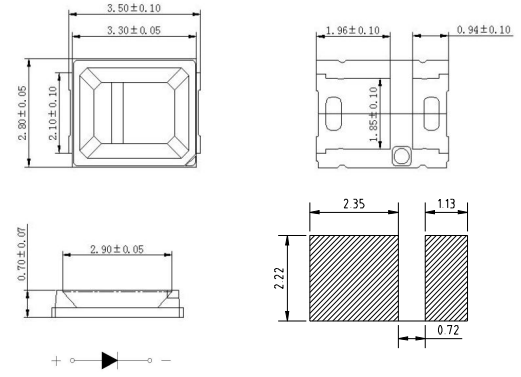

![](https://www.rodan.com.tw/upload-files/Sensor_Component/PLCC2835_spec.png)
The LED Infrared packaged in EMC PLCC (Plastic Leaded Chip Carrier) combines the efficiency of Infrared light emission with the convenience of a compact, surface-mount package. This integration enhances durability, ease of assembly, and thermal performance, making it a reliable choice for diverse applications such as remote sensing and communication systems.
