RT-3535ET20-120
Product Features
* 3535 , 2θ1/2 : 120° , λp: 850 nm , Ie : 500 ~ 550 mW/sr @ 700mA
* Compact, surface-mount package
* Rapid response times, and minimal heat emission
* Customization for different package size
Application:
Medical equipment
Barcode reader
Bill detector
Optical switch
Optical fiber communication
Remote control
Smoke detector
Consumer product

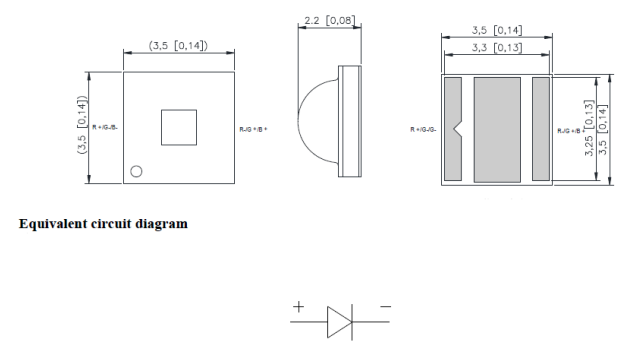

- Product Specifications
- Product Description
![](https://www.rodan.com.tw/upload-files/Sensor_Component/3535_spec.png)
The LED Infrared packaged in EMC PLCC (Plastic Leaded Chip Carrier) combines the efficiency of Infrared light emission with the convenience of a compact, surface-mount package. This integration enhances durability, ease of assembly, and thermal performance, making it a reliable choice for diverse applications such as remote sensing and communication systems.
